Introduction

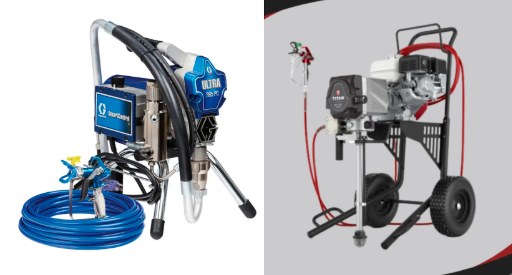

If you’re in the painting business or a DIY enthusiast, you know how crucial a reliable paint sprayer is. The Graco 395 and Titan Epic sprayers are industry favorites, but like any heavy-duty equipment, their parts wear out over time. Knowing which components need regular checks, replacements, or upgrades can save you time, money, and frustration.
In this guide, we’ll break down the key parts for both sprayers, explain their functions, and share maintenance tips to keep them running smoothly. Whether you’re troubleshooting a clog or just doing routine upkeep, this breakdown will help you get the job done right.
1. Graco 395 Paint Sprayer Parts – What You Need to Know
Spray Gun & Nozzle Assembly
The spray gun is the heart of your Graco 395, controlling paint flow and pattern. The nozzle assembly, including the tip and guard, determines spray width and material output. If your sprayer is spitting or producing uneven coats, check for worn tips or clogged nozzles.
Replacement tips come in different sizes (e.g., 515, 517) for various materials. Always match the tip size to your paint’s viscosity. A damaged nozzle guard can also affect spray accuracy, so inspect it regularly for cracks or debris buildup.
Pump & Motor Components
The pump drives paint from the hose to the gun, and the motor powers the entire system. If your sprayer struggles to maintain pressure, the issue could be a worn piston pack or ball check valves. These parts endure high stress and need periodic replacement.
Listen for unusual noises—grinding or knocking sounds may indicate motor bearing failure. Keeping the pump lubricated with Graco pump armor extends its lifespan, especially during storage.
Hoses & Filters
A damaged hose can leak or restrict flow, reducing efficiency. The suction tube and filter prevent debris from entering the pump. If paint flow is weak, check for clogs in the inlet filter or cracks in the hose.
For longer hose life, avoid kinks and clean it thoroughly after each use. The gun filter also needs regular cleaning—soak it in solvent if paint buildup occurs.
2. Titan Epic Sprayer Parts – Essential Components
Spray Gun & Tip System
The Titan Epic spray gun is built for precision, with adjustable settings for different coatings. The tip (e.g., 421, 517) affects fan width and material flow. If the spray pattern is inconsistent, the tip might be worn or clogged.
Titan’s RAC X guard protects the tip and ensures even distribution. Always flush the gun after use to prevent dried paint from jamming internal parts.
Pump & Drive System
The Titan Epic’s pump is designed for heavy-duty use, but parts like the packing kit and seals wear out over time. If you notice leaks near the pump, it’s time to replace these components.
The motor drive system powers the pump—unusual vibrations or power loss could mean a failing motor or worn gears. Regular lubrication keeps the system running smoothly.
Hoses & Fluid Management
Titan’s reinforced hoses handle thick coatings, but they can degrade with prolonged use. Check for cracks or swelling, which indicate replacement is needed. The fluid filter prevents clogs—clean it after each project to avoid blockages.
For optimal performance, use Titan’s recommended hose sizes and avoid bending them at sharp angles.
3. Where to Buy Replacement Parts & Maintenance Tips
Trusted Suppliers
For Graco 395 parts, check Graco’s official site, Amazon, or paint supply stores. Titan Epic components are available at Titan Tools, Sherwin-Williams, or industrial equipment retailers. Always buy OEM parts for compatibility.
Routine Maintenance
- Flush the system after each use with appropriate solvents.
- Inspect seals and O-rings—replace if cracked or brittle.
- Store properly—use pump protectant and keep parts in a dry place.
Troubleshooting Common Issues
- Low pressure? Check for clogged filters or worn pump parts.
- Leaks? Inspect hose connections and seals.
- Inconsistent spray? Clean or replace the nozzle tip.
Conclusion
Keeping your Graco 395 or Titan Epic sprayer in top shape means understanding its key parts and performing regular maintenance. Whether it’s replacing a worn nozzle, fixing a leaky pump, or upgrading your hose, knowing what to look for ensures smooth operation and professional results.
By following this guide, you’ll extend your sprayer’s lifespan and avoid costly downtime. Have any questions or tips of your own? Drop them in the comments—we’d love to hear from you!
